Digital High-Power Desoldering Tool FR410 HAKKO 140W Rework Station Lead Free Soldering ESD Safe RoHS Compliant FR-410 FR 410

Product Name FR410-67-heavy-duty-desoldering-tool

Voltage Available in 230V. Please reach out to us if you have other voltage requirement.

Warranty One year

Nozzle Type N61

Type Digital

Heating element Composite heater

Temperature range 330 - 450°C

Temperature stability ±5°C at idle temperature

Soldering iron - Temperature range: 50 - 480°C

- Temperature stability: ±1°C at idle temperature

- Tip-to-Ground Resistance: < 2 ohms

- Tip-to-Ground Potential: < 2mV

- Heating element: ceramic heater

- Cord length: 1.2m

- Total Length (excl cord): 217mm (with B tip)

- Weight (excl cord): 46g (with B tip)

Desoldering tool - Power consumption: 140W

- Nozzle-to-Ground Resistance: < 2 ohms

- Nozzle-to-Ground Potential: < 2mV

- Heating element: composite heater

- Cord length: 1.2m

- Total Length (excl cord & hose): 168mm (with Φ1mm S type nozzle)

- Weight (excl cord & hose): 190g (with Φ1mm S type nozzle)

Wattage 190W

Temperature range (depending on tools) 350 to 500°C

Output voltage AC 24V

Max Operating Temp 450 degree Celcius

Power consumption 190W

Weight Station: 4.8kg

Desoldering tool: 0.2g (excl cord & hose)

Features / Description - Desoldering tool with built-in vacuum pump

- 140 W high power enables perfect desoldering on multi-layer PWB

- New type nozzle can fit onto micro land patterns and narrow space

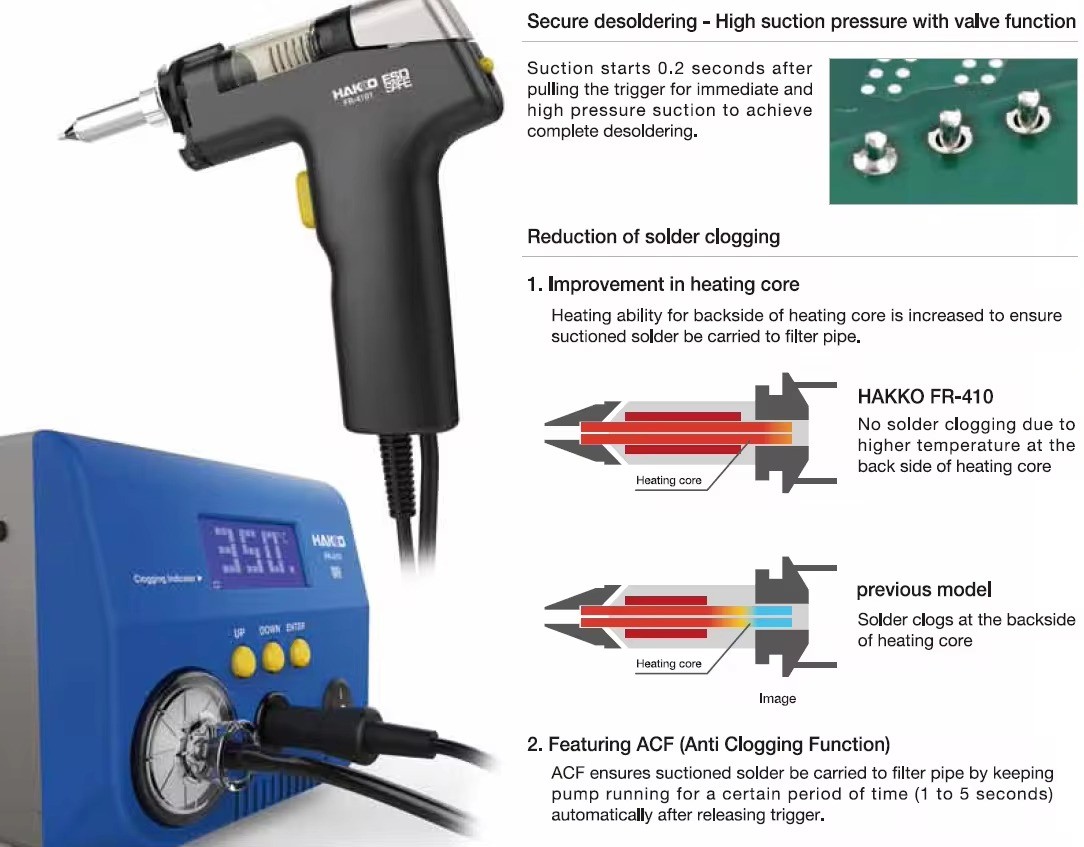

- Secure soldering, valve function that suctions with high pressure

- Improment in heating core

- Featuring Anti Clogging Function (ACF)

- Reduction of solder clogging by improved heating core

Dimensions (mm) 190 (w) x 140 (h) x 220 (d)

Suction flow 15L/min

Vacuum generator Vacuum pump, double cylinder type

Vacuum pressure 80 kPa (600 mmHg, max.)

Nozzle to ground resistance (ohm) <2 ohm

Nozzle to ground potential (mV) <2 mV

Heating element Soldering iron: ceramic heater

Desoldering tool: composite heater
