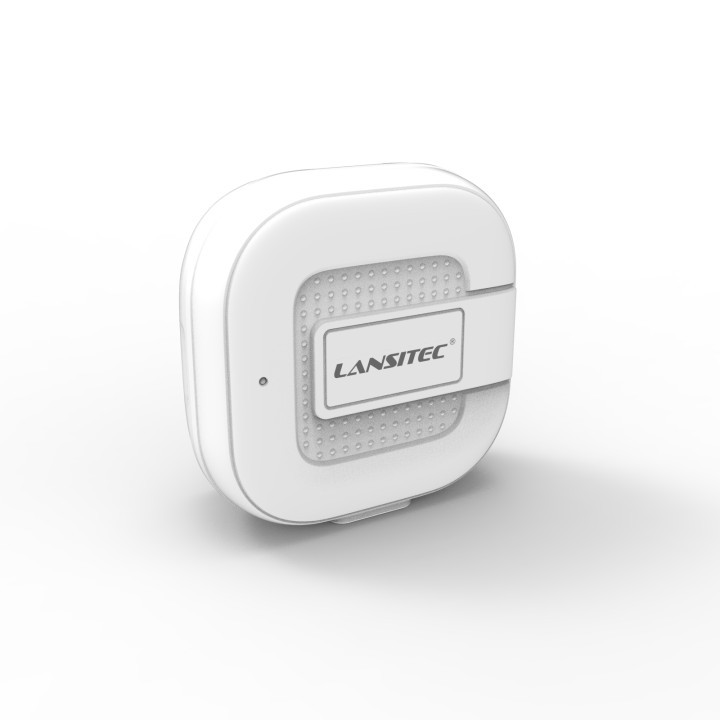

Lansitec multi-function Helmet Sensor GNSS BLE LoRaWAN Simple installation industry management smart gps tracking device tracker

Bluetooth Protocol

Bluetooth 5.0, iBeacon

Bluetooth TX Power

-20 to +4 dBm TX power, configurable in 4dB steps

Bluetooth Sensitivity

-96dBm

Bluetooth Positioning Accuracy

3m

LoRaWAN Protocol

LoRaWAN 1.0.2B, Class A

Activation Mode

OTAA or ABP

LoRaWAN Band

US915, AU915, EU868, EU433, AS920-923, AS923-925, RU864,

ID920, KR920, IN865, KZ865, CLAA, CN470, CN470-Ali

LoRa TX Power

0 to 20dBm

LoRa Distance

> 1km in urban area

Encryption

AES128

GNSS Band

1575 to 1610MHz

GNSS Tracking Accuracy

2.5m

GNSS Cold Start Duration

30s to 60s

Battery

Li-ion, 1000mAh

GNSS (report interval >10minutes)

Approx. 5,000 times

Bluetooth Positioning

Approx. 160,000 times

Dimension

80*80*35mm

Battery

Li-ion, 1000mAh

Operating Temperature

-10°C~+60°C

Charging Temperature

0°C~+50°C

Weight

90g

Housing Material

PC

Ingress Protection

IP68

Impact Protection

IK10

Standby Current

25μA

Maximum Current

145mA

Function

G-sensor, Gyroscope, Barometer, Tamper detection

PCB Coating

Water proof coating

NFC Tag

1KB

Battery Level Report

Support

Certification

CE, FCC, ATEX
