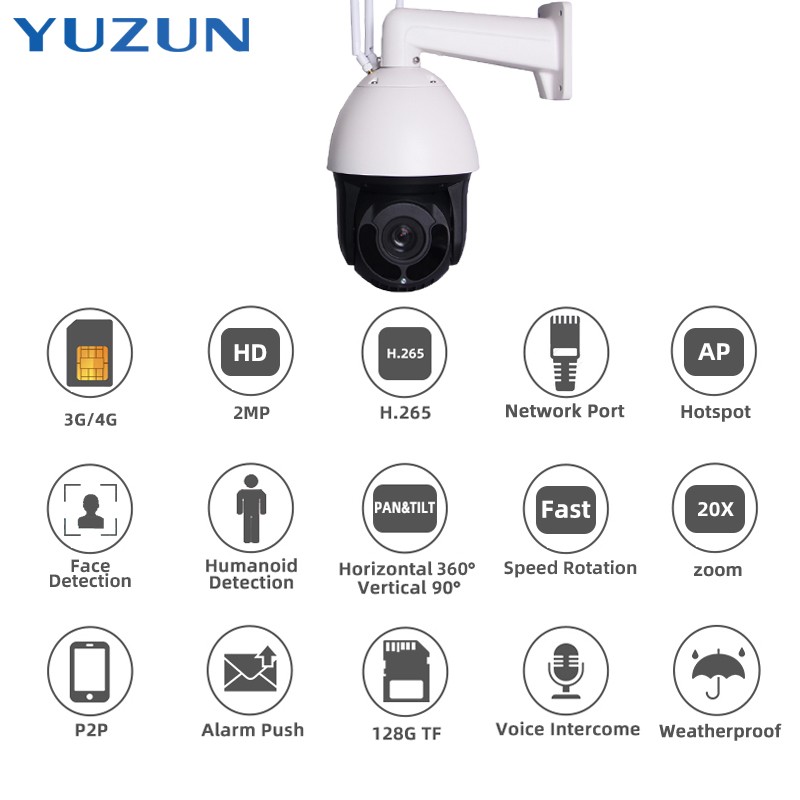

YUZUN Factory 1080P Auto Tracking AI 20X Zoom Human Detection Face Detection Night Vision Two Way Audio 4G Camera H.265 OEM, ODM

Operating Band

FDD LTE: B1/B3/B8

TDDLTE: B38/B39/B40/B41

TDSCDMA: B34/B39

WCDMA: B1/B8

GSM: 900/1800

Speed

LTE-FDD：Max 150Mbps(DL) Max 50Mbps(UL)

LTE-TDD：Max 130Mbps(DL) Max 35Mbps(UL)

DC-HSPA+：Max 42Mbps(DL) Max 5.76Mbps(UL)

UMTS：Max 384Kbps(DL) Max 384Kbps(UL)

TD-SCDMA: Max 4.2Mbps(DL) Max 2.2Mbps(UL)

CDMA: Max 3.1Mbps(DL) Max 1.8Mbps(UL)

EDGE: Max 236.8Kbps(DL) Max 236.8Kbps(UL)

GPRS: Max 85.6Kbps(DL) Max 85.6Kbps(UL)

Model

YZ-H520AI20FZG

Clarity

1920×1080@25fps

Lens

Standard 4.7~94mm lens

Zoom speed

4s

Minimum Focus Distance

100~1000mm (near-focus~tele-focus)

Image Sensor

1/2.8' Sony Mega Progressive Scan CMOS

Min. illumination (LUX)

color：0.05Lux@F1.6

black and white：0.01Lux@F1.6

Compression Format

H.265

Automatic tracking

Built-in AI algorithm, support for human shape recognition and face detection, lock the target after the algorithm automatically adjusts the PTZ position and lens focal length tracking zoom face.

Tracking Mode

Support preset point tracking and cruise tracking mode

AI Alarm

Support humanoid target detection with adjustable target size and sensitivity

Alarm linkage

When the humanoid target is identified, the tweeter can be triggered to send an alarm tone, trigger alarm video and alarm push information; the triggered alarm tone can be recorded or input text for voice synthesis.

PTZ Function

horizontal 360 °,0.05°~240°/s

vertical -15°~90 °,0.05°~180°/s

Electronic fence

Each preset point can correspond to a different electronic fence as recognition scene, up to 16 preset points as a group of cruising points for vigilance.

Number of preset points

256

Cruise Lines

4 bars (each bar can be set up to 16 preset points, preset point dwell time adjustable)

Watchman position

Support guard position function, can set 1 guard position

IR

Using eight 850nm 42um infrared lights, night vision distance up to 200 meters

Voice Intercom

Optional speaker, support two-way voice intercom, to achieve remote shouting function

Antenna

built in 2× 4G antennas and 1× wifi antenna

AP Hotspot

Build its own AP hotspot to share 4G network with other wireless devices.

Network Interface

1 RJ45 10/100Mbps network interface for sharing 4G network to other wired devices for Internet access

Storage

Local storage support, MicroSD card expandable up to 128G;

Support cloud storage, need to pay separately to buy cloud storage space.

Power

Daytime ≤ 10W, night ≤ 20W (wide angle, after the infrared light is turned on)≤ 5W during the day, ≤ 10W at night (after the infrared light is turned on).

Power Supply

DC12V

IP Rating

IP66, built-in 4000V lightning, surge and surge protection
